Lec34) Socket Programming Part-1

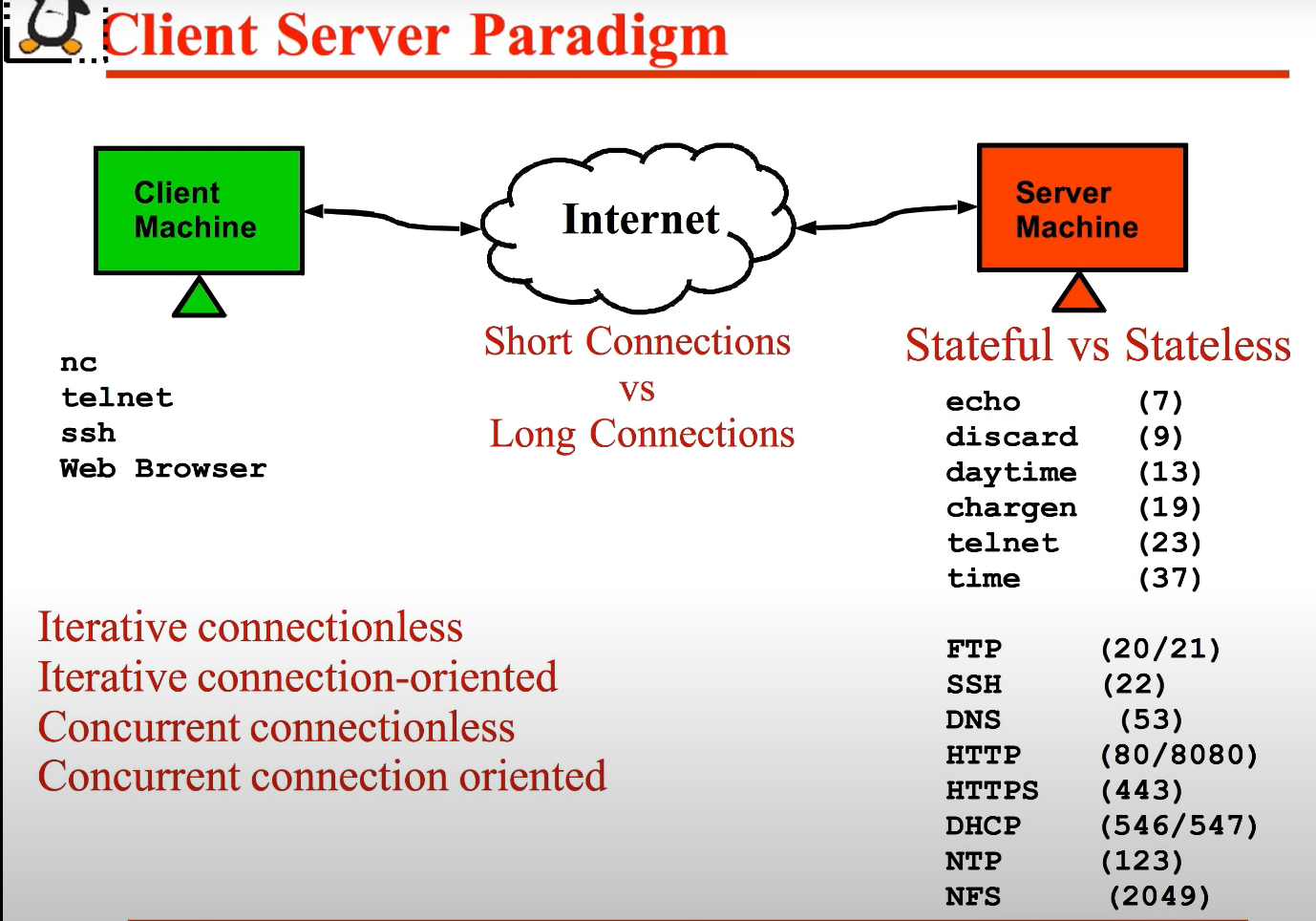

short connections = something like echo it is very short term connection

long connections = telnet , ssh is very long term connection it goes on until client send quit message to server



Socket

communciation end point to which an application can write data and from which an application can read data.



Stream Sockets

provide a reliable , full duplex , steram oriented communciation channel.

do not support broadcasting and muticasting



stream = no concept of message boundary

reliable = can be reconstructed

flow control using sliding window =

congestion control = slow start , lot of strategies.

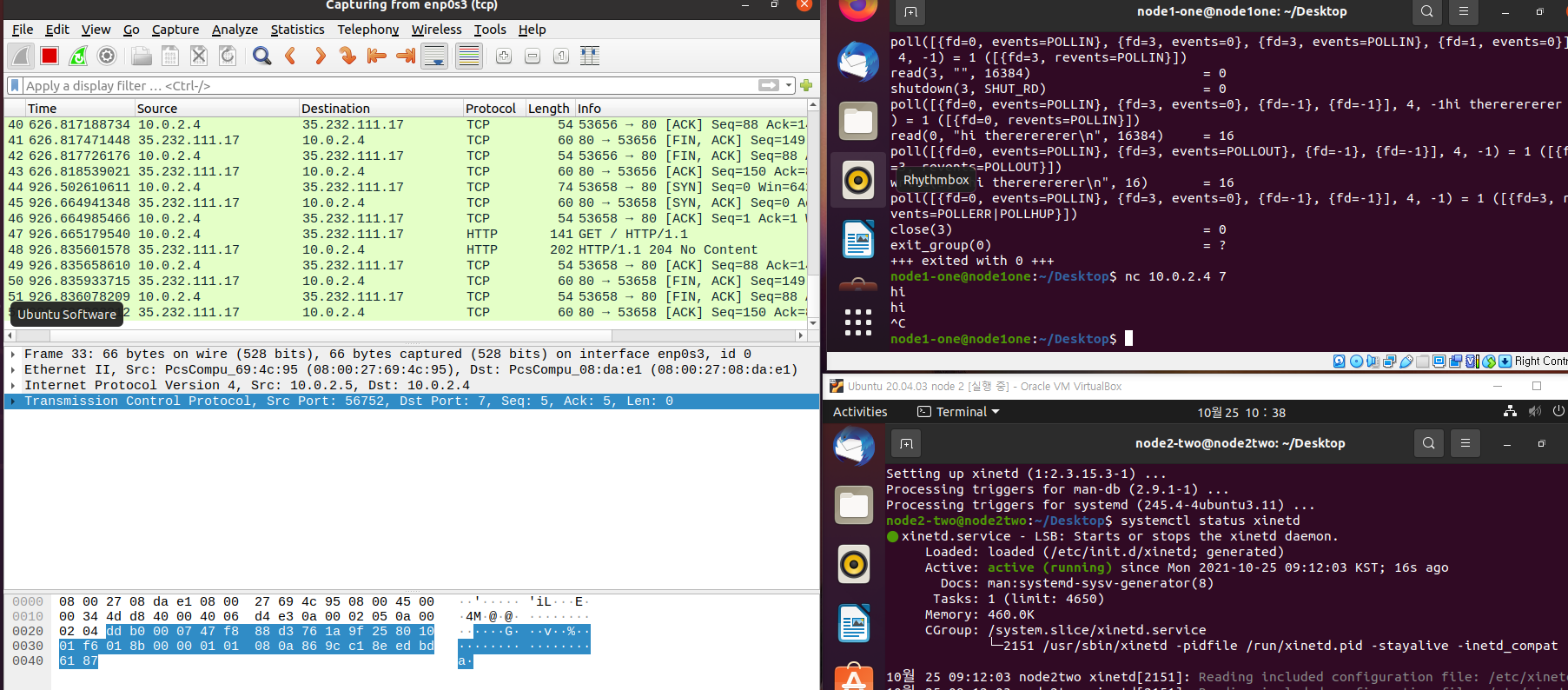

we can check with strace command how connection works when we try to conenct echo (7)

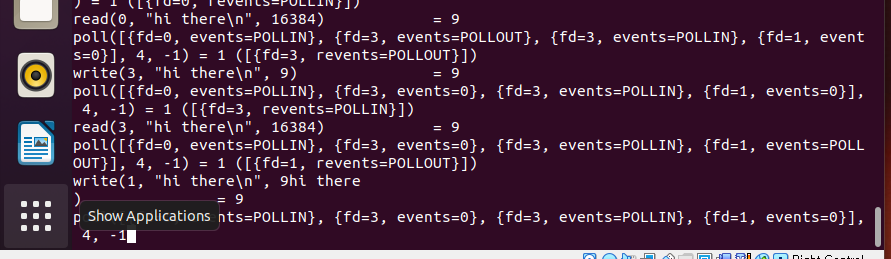

when type something it just echo back,  and we can see read, write method calling



4way hand shake can be checked when closing socket with wire shark.

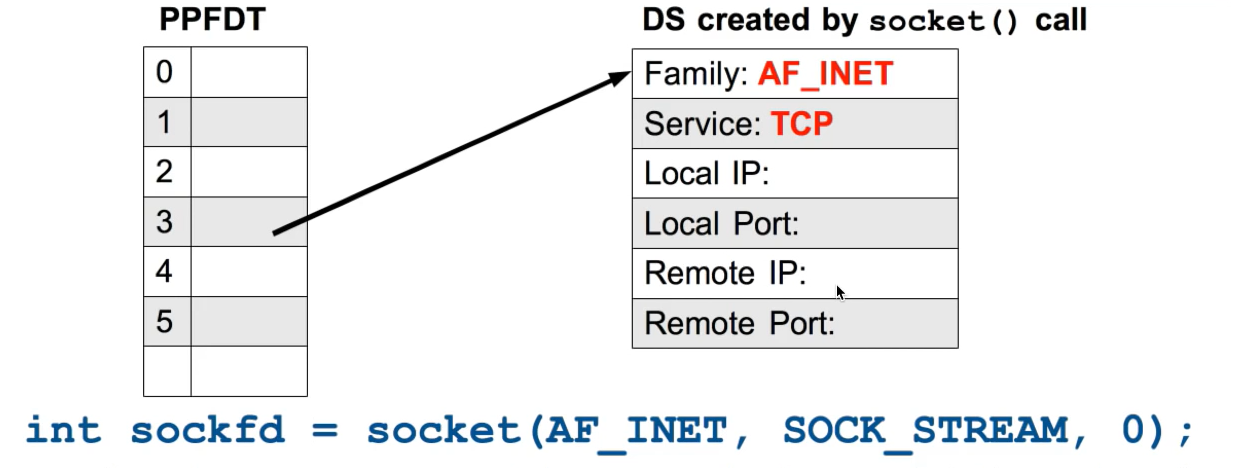

when the local address is stored in socket data strcuture we say that the socket is half associated

when both local and remote address are stored in socket data strcuture, fully associated.



network = big endian

x6 = little endian

so we use byte ordering function like htons to synchronize



#include <sys/types.h>
#include <sys/socket.h>
#include <netdb.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
int main(int argc, char** argv){
//*** STEP-I:  Create a socket
   int sockfd = socket(PF_INET, SOCK_STREAM, 0);
//*** STEP-II: Populate Socket's DS for remote IP and Port, and
//***          let the local IP and Port be selected by the OS itself
   struct sockaddr_in dest_addr;
   dest_addr.sin_family = AF_INET;
   dest_addr.sin_port = htons(54154);
   inet_aton("192.168.100.20", &dest_addr.sin_addr);
   memset(&(dest_addr.sin_zero), '\0', sizeof dest_addr.sin_zero);
//*** STEP-III: Connect this socket to the server's socket
   connect(sockfd, (struct sockaddr*)& dest_addr, sizeof dest_addr);
//*** STEP-IV:  Client reads string from stdin and send it to server
//***           then read string returned by server and display on stdout
   char buff1[128],buff2[128] ;
   while(1){
      int n = read(0, buff1, sizeof buff1);
      buff1[n] = '\0';
      write(sockfd, buff1, strlen(buff1));
      n = read(sockfd, buff2, strlen(buff1));
      buff2[n] = '\0';
      write(1, buff2, n);
   }
//*** STEP-V:  Close socket
   close(sockfd);
   exit(0);
}

echo client code



#include <sys/types.h>
#include <sys/socket.h>
#include <netdb.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#define BACKLOG 10  //how many pending connections queue  will hold

int main(){
   int server_sockfd;//socket on which server process will listen for incoming con
   int client_sockfd; //socket on which the server will be comm with the client
   struct sockaddr_in server_addr;
   struct sockaddr_in client_addr;

//*** STEP-I:  Create passive socket for the server
   server_sockfd = socket (AF_INET, SOCK_STREAM, 0);

//*** STEP-II: Create a address structure containing server IP addr
//***          and port, then bind the server_sockfd with this address
   server_addr.sin_family = AF_INET;
   server_addr.sin_port = htons(54154);
   inet_aton("192.168.100.20", &server_addr.sin_addr);
   memset(&(server_addr.sin_zero), '\0', sizeof server_addr.sin_zero);
   bind(server_sockfd, (struct sockaddr*)&server_addr, sizeof server_addr);

//*** STEP-III: Create a connection queue and wait for clients
   listen(server_sockfd, BACKLOG);
   while(1){
      fprintf(stderr,"\nServer waiting for client connection...");

//*** STEP-IV: Accept a connection, blocks until connection from client is established
//****         will return a brand new descriptor for comm with this single connection
      int client_len = sizeof client_addr;
      client_sockfd=accept(server_sockfd,(struct sockaddr*)&client_addr,&(client_len));
      fprintf(stderr, "\n********* CLIENT CONNECTION ESTABLISHED ********");

//STEP-V ***** Read from sockfd and write back
      char buf[100];
      int rv;
      while (rv = read(client_sockfd, buf, sizeof buf))
        write(client_sockfd, buf, rv);
      close(client_sockfd);
      fprintf(stderr, "\n********* CLIENT CONNECTION TERMINATED ********");
      }
   return 0;
 }

echo server code



with command

scp ./tcpechoserver root@ip.port: ~/

we can securely copy file to remote server
