Lec29, 30) Programming With Shared Memory , Memory Mapped Files

Shared Memory

allows 2 or more processes to share a memory region or segment of memory for reading and writing purposes

the problem with pipes, fifo and message queue is that mode switches are involved as the data has to apss from one process buffer to the kernel buffer and then to another process buffer

since access to user-space memory does not require a mode switch , thereofre , shared memory is considered as one of the quickest means of IPC





shmget system call

creates a new shared memory segment or obtains the identifier of an existing segment. the contents of a enwly created shared memory segment are initialized to 0. return value is the id of the shared memory segment.



shmat system call

attaches the shared memory segment identified by shmid to the address space of the calling process

shmdt system call

when a process no longer need to access a shared memory segment , it can call shmdt() to detach the segment from its address space

a child creted by fork() inherits its parent's attached shared memory segments, however , after an exec() , all attached shared memory segments are detached





writer

#include <stdio.h>
#include <sys/shm.h>
#include <sys/ipc.h>
#include <sys/stat.h>
int main(){
// ftok to generate unique key
   key_t key = ftok("f1.txt", 65);
// shmget returns an identifier in shmid
   int shmid = shmget(key, 1024, 0666|IPC_CREAT);
// shmat to attach to shared memory
   char *buffer = (char*)shmat(shmid, NULL, 0);
   printf("Please enter a string to be written in shared memory:\n");
   fgets(buffer, 512, stdin);
   printf("\nData has been written in shared memory. Bye\n");
//detach from shared memory
   shmdt(buffer);
   return 0;
}

reader

#include <stdio.h>
#include <sys/shm.h>
#include <sys/ipc.h>
#include <sys/stat.h>
int main(){
// ftok to generate unique key
   key_t key = ftok("f1.txt", 65);
// shmget returns an identifier of existing shared memory
   int shmid = shmget(key, 1024, 0666|IPC_CREAT);
// shmat to attach to shared memory
   char *buffer = (char*)shmat(shmid, NULL, 0);
   printf("Data read from memory: %s\n", buffer);
//detach from shared memory
   shmdt(buffer);
// destroy the shared memory
//   shmctl(shmid, IPC_RMID, NULL);
   return 0;
}







Memory Mapped Files

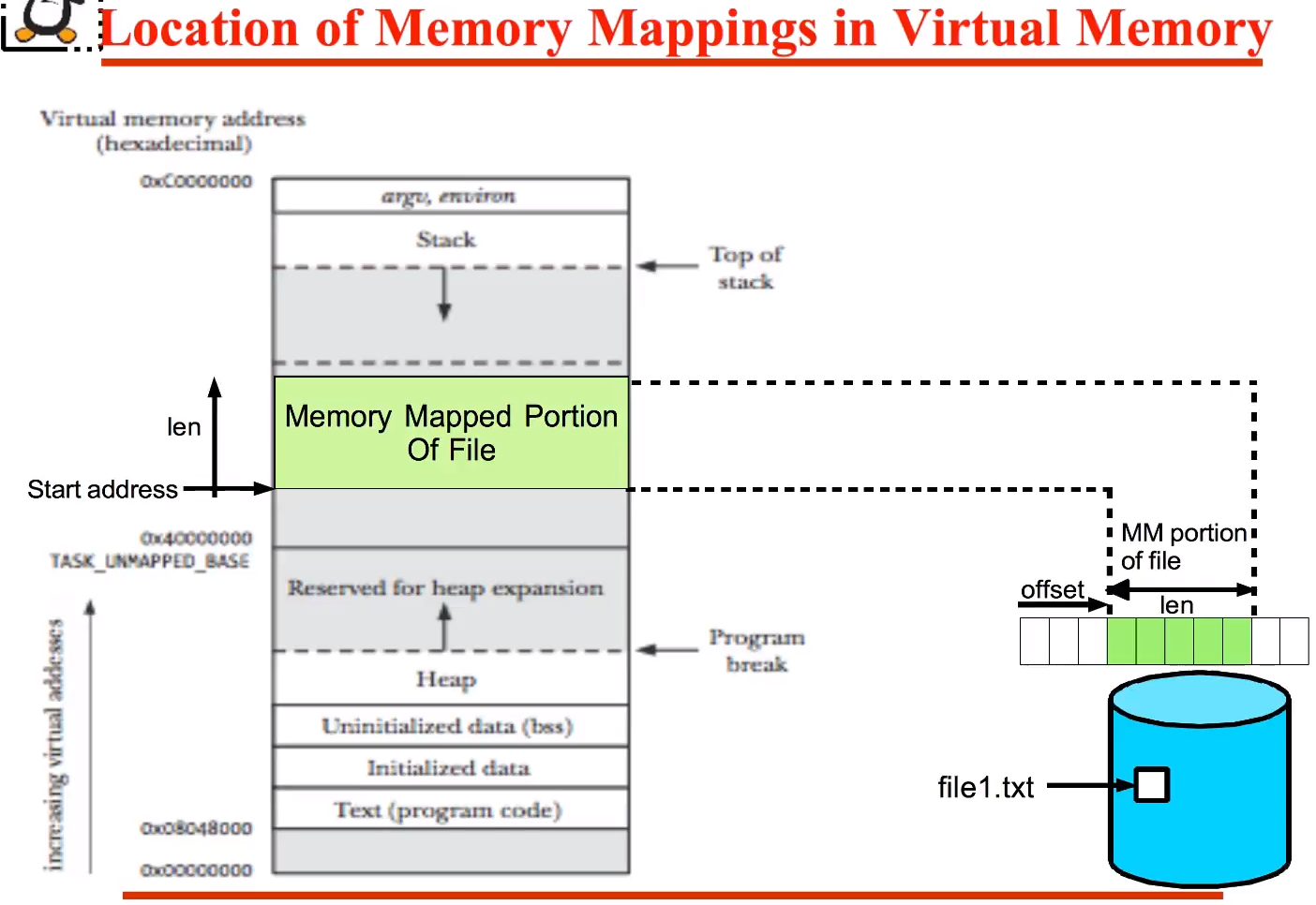

is mostly a segment of virtual memory that has been assigned a direct byte-for-byte correlation with some portion of a file on disk.

Memory mapped I/O let us map a file on disk into a buffer in process address space so that when we fetch bytes from the buffer, the corresponding bytes of the file are read. similarly when we store data in the buffer, the corresponding bytes are automatically written to the file. this lets us perform I/O without using read or write system calls.

Persisted / File Mapping

Non-Persisted ? Anonymous Mapping



Shared File Mapping

Mutiple process mapping the same region of file share the same physical pages of memory. whenever a process tries to write, the modifictions to the contents of the mapping are carried through to the file.

uses of shared file mapping

• Memory mapped I/O
• IPC in a manner similar to System V shared memory segments between related or unrelated processes.



Private File Mapping

Modification are not visible to other processes. Mutiple porcesses mapping the same file initially share the same physical pages of memory. whenever a process tries to write , copy on write technique is employed, so that changes to the mapping by one process are invisible to other processes





mmap system call

used to request the creation of memory mappings in the address space of the calling process. On success it returns the starting address of the mapping

msync system call

causes the changes in part of all of the memory segment to be written back to (or read from) the mapped file.

munmap system call

simply unmaps the memory mapped region pointed to by addr with length len (addr, len are arguements of this system call)



#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <sys/wait.h>
#include <fcntl.h>
#include <string.h>

int main(int argc, char* argv[]){
//open a file
   int fd = open("f1.txt", O_RDONLY);
//get attributes of the file
   struct stat sbuff;
   fstat(fd, &sbuff);
   int fsize = sbuff.st_size;
//memory map the file
   char* filedata = mmap(NULL, fsize, PROT_READ, MAP_SHARED, fd, 0);
//create a child process
   pid_t cpid = fork();
   if(cpid==0){
      printf("Child access memory mapped file:\n%s", filedata);
      munmap(filedata, fsize);
      close(fd);
      exit(0);
   }
   else{
      waitpid(cpid, NULL,0);
      printf("Parent access memory mapped file:\n%s", filedata);
      munmap(filedata, fsize);
      close(fd);
      exit(0);
   }
   return 0;
}
